Known Problems and Workarounds
|Web Soil Survey doesn’t work if you have popups blocked.
Web Soil Survey opens various content in a separate browser window (a popup):
- The Home Page opens the Web Soil Survey application in a separate browser window.
- By default, the PDFs created by the Printable Version control
and by Checkout on the Shopping Cart tab are opened in a separate browser window.
- By default, Web Soil Survey opens external links in a separate browser window.
- By default, Web Soil Survey opens the Data Available Status Map PDF in a separate browser window.
In order for this to work, you must allow the Web Soil Survey site (websoilsurvey.nrcs.usda.gov) to open
You may have popup blocking enabled in your browser,
and you may have other popup-blocking programs installed,
either as browser add-ons, or as separate applications.
Popup are often blocked by more than one application — in this case, you must
configure all of them to allow the Web Soil Survey site (websoilsurvey.nrcs.usda.gov) to open

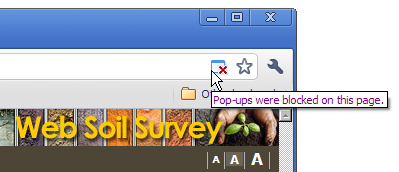

In the Google Chrome browser, if popups are blocked, you will see the “blocked pop-up alert” icon at the right end of the address bar:

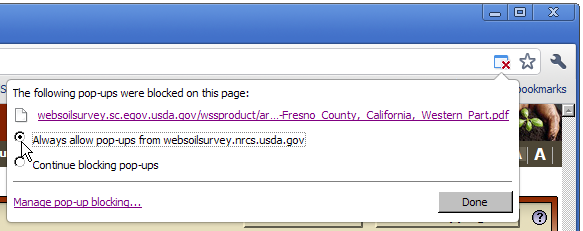

Click this icon, and you will see the following dialog:
Select “Always allow pop-ups from websoilsurvey.nrcs.usda.gov” and press Done.
If you cannot configure your software to allow popups, proceed as follows:
- Since the Home Page always opens Web Soil Survey in a separate window,
instead of starting it from the home page, access the Web Soil Survey application directly,
- On the Web Soil Survey application page, click the Preferences link in the Navigation bar.
- Uncheck “Open Links and PDFs in External Windows”.
- Click the Save Preferences button.
|Multiple instances of the same browser type (e.g., Internet Explorer, Chrome, Firefox, Safari) can't run WSS at the same time.
Web Soil Survey maintains a session between the server and your browser. Multiple instances of the same browser type
will share the session.
Workaround: If you wish to run simultaneous WSS sessions, use different browser types.
|Errors or slow performance with large Soil Survey Areas
WSS allows you to set an entire Soil Survey Area as your Area of Interest (AOI). Some Soil Survey Areas contain a very large amount of data.
This can cause slow performance and sometimes errors - most often when drawing maps or creating PDF documents.
Workaround: Use the map AOI tools to define an AOI for a smaller area within the Soil Survey Area.
|Application terminates with the message
“Session data has become unavailable. Your session has been terminated.”
||Web Soil Survey maintains a session between the server and your browser.
In certain cases, your browser will be redirected
to a different instance of the Web Soil Survey server
from the one on which you established your session.
This other server instance does not have access to your session data,
and cannot do anything but terminate your session.
This usually happens when your ISP changes your system’s apparent IP address.
For example, America Online is known to change users’ IP addresses frequently,
for security reasons.
|In Firefox, when first starting Web Soil Survey,
you may see the message, “Your Web Soil Survey session has expired.”
In Firefox and other Gecko-based browsers, session cookies are shared among all browser windows.
This means that every Gecko browser window open at the same time is associated with the same
Web Soil Survey session.
It also means that if you do not logout from Web Soil Survey, and simply let your session time out,
the next time you start Web Soil Survey, the application will notify you that your previous session has expired.
By contrast, in Internet Explorer session cookies are only shared among browser windows
started from the same browser window
(using File→New Window, for example).
Thus when you start Web Soil Survey in a new Internet Explorer browser window,
it will be assigned a new session cookie.
Workaround: When you are done with Web Soil Survey,
click the Logout link in the navigation bar.
Or if you do see the “Your Web Soil Survey session has expired” message,
simply refresh the browser to start over.
Area of Interest and Quick Navigation
|When importing a shapefile as an Area of Interest, errors in the shapefile are incorrectly resulting in error message “Cannot reproject Shapefile to WGS84”.
||The shapefile is not supported by WSS, but the error message is misleading. Shapefiles must contain a single geometry of type Polygon (Polygon ZM is not supported).
The polygon must be valid and must be smaller than 100,000 acres.
|Failure to import a shapefile that was created with AutoCad Map.
||Cases have been reported of shapefiles failing to import because they are of type Polyline. WSS only supports Polygon.
Workaround: Using AutoCad Map,
- Type ‘mappolylinetopolygon’ in the command line.
- Select the polyline you want to convert.
- Once the object is a polygon, create a shapefile using the map export tool.
- Select polygon for object type in the dialog box.
- Hit OK to export the shape file.
- Import into WSS.
|Sometimes a Web Soil Survey URL in the Link bib cannot be saved as a Favorite in Internet Explorer.
Normally, in Internet Explorer, you can right-click the URL in the Link bib and save it as a Favorite by clicking “Add to Favorites...”.
If the URL is too long, when you click Add from the Add to Favorites dialog,
you may see the error “The name you have entered for the favorite is too long.”
If this happens, just replace the URL in the “Name:” text input with a suitable title for the Favorite.
If the URL is even longer, nothing will happen when you click the “Add to Favorites...” menu item.
This is a bug in Internet Explorer.
- Right-click the URL and click “Copy Shortcut”.
- From the Favorites menu at the top of the browser, click “Add to Favorites...”.
Give the Favorite a suitable name.
This will add a favorite for the default Web Soil Survey URL.
- From the Favorites menu, right-click the Favorite you just added, and click “Properties”.
- In the Web Document tab, in the “URL:” text input, paste the URL you saved in the first step.
|If you save a Web Soil Survey URL (with AOI, location, etc.) as a hyperlink in a Microsoft Word document,
clicking the link opens Web Soil Survey in a browser, but ignores the parameters.
||This is caused by an unfortunate interaction among Microsoft Word (or other Micrsoft Office application),
the web browser, and the Web Soil Survey application.
When you open Web Soil Survey with a URL containing AOI, location, etc.,
Web Soil Survey interprets the URL query parameters on the server, and then redirects to the normal Web Soil Survey URL.
Microsoft Office applications such as Word, Excel, and PowerPoint follow this redirection,
and only then invoke the default browser to display the link.
But the browser starts Web Soil Survey in a new session,
and the session in which the query parameters were set is no longer available.
Workaround: Instead of clicking the hyperlink, copy and paste it into your browser’s address bar.
|In Safari on Windows, if you paste a Web Soil Survey URL into the address field,
using the Paste context menu item, Safari ignores the URL.
||This is a bug in Safari on Windows. This is not a problem in Safari on Macintosh.
- Paste using CTRL-V (instead of the Paste context menu item), then press Return.
- Paste (using the Paste context menu item or CTRL-V), then type a space after the URL in the address field, then press Return.
|Navigate by Hydrologic Unit does not work in areas outside the contiguous United States.
|Navigating to Alaska gives an “Invalid location” error.
Because of problems with the 180° West Longitude line,
some choices for State and County in the Quick Navigation State and County form
result in “Invalid location” errors.
In particular, the following do not work correctly:
- the state of Alaska
- Aleutians West County, Alaska
See also the known problem Errors crossing the 180° West Longitude line.
For Aleutians West County, Alaska, because it spans the 180° West Longitude line,
|Quick Navigate to Bureau of Land Management → Alaska → Anchorage gives a “Cannot navigate beyond longitude 180° or -180°” error.
||The Anchorage BLM office covers an area from the Aleutian Islands to far southeast Alaska,
which is an invalid extent for Web Soil Survey, as currently implemented. No workaround.
|Errors crossing the 180° West Longitude line.
||You will see “Invalid location” errors when you zoom out too far,
or when you zoom to a location that crosses the 180° West Longitude line,
for example, Aleutians West County, Alaska. No workaround.

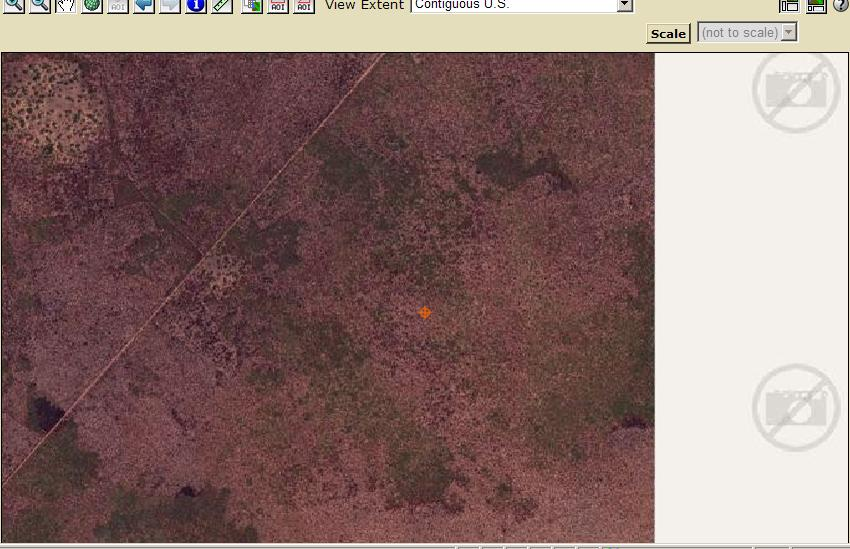

|Map has missing imagery and shows “no camera” picture instead.
No imagery is available at this location. No workaround.
|Poor "Topographic Map" image quality at large scales.
||The "Topographic Map" background layer is best suited for display at scales of 1:18,000 and smaller.
If you use a larger scale (i.e., choose a larger scale or zoom in too far) the layer appears blurry.
Workaround: Choose different layers in the Legend to provide similar infomation.
|Map Legend “View Layer Descriptions” and “Edit Layer Properties” don't work in USDA CCE Firefox.
||These features do not work in Firefox for USDA employees. This is because the Firefox "Disable or replace context menus"
option is disabled on USDA systems. The Web Soil Survey context menu is there, but it's underneath the Firefox context menu.
Workaround: Use Internet Explorer or Chrome.
Soil Data Explorer
|When AOI is in multiple soil survey areas, one of which has no soil maps,
Crop Yield ratings may result in the error “Cannot generate a map.”
||Workaround: Create an AOI for the area within each of the soil survey areas separately.
|When your AOI is in a soil survey area that has no soil maps, if you change your map unit selection,
ratings you‘ve already run will not take into account your changed map unit selection.
||For example, create the AOI, select the map units you are interested in (in the AOI Properties panel),
then run a Crop Yield rating.
In Basic Options, you can select from the crops that are relevant to the map units you have selected.
If you later change your map unit selection,
the Crop Yield rating form will not update and show the crops relevant to your new list of map units.
Workaround: Create your AOI again,
and select the map units you need in the first place, or select all map units.
|When switching back-and-forth between the "Suitabilities and Limitations for Use",
Soil Properties and Qualities" and/or "Ecological Site Assessment" sub-tabs, prior
ratings are not re-displayed (the uncolored "Soil Map" is shown instead).
||Workaround: Click on "View Rating" to re-run the rating (in some cases,
such as when no Rangeland/Forestland selection is needed,
the Ecological Site Assessment rating is re-run automatically).
|Using Internet Explorer, Spanish Soil Report names are displayed incorrectly.
Workaround: This is a problem with Internet Explorer. One workaround is to
use a different browser (such as Chrome or Firefox).
Another workaround is to refresh Internet Explorer (F5 key).
This works for the report names and the reports themselves, but not for the report description (“View Description”).
Printable Maps and Reports
|The browser starts up Adobe Reader, but the PDF is not visible.
||In some cases, Printable Version or Checkout on the Shopping Cart tab
creates a PDF, and opens it in Adobe Reader in a browser window, but the document is not visible.
Workaround: Refresh the browser window containing the Adobe Reader.
|Labels are omitted, appear to be garbled, or appear to be missing
characters (and the created maps are at scale of 1:50,000 or greater)
||In extremely rare cases labels may be incorrectly shown in
"Printable Version" or "Custom Soil Resource Reports" maps: labels for
a few mapunit and rating polygons are either incomplete (for example,
"ade" is drawn in place of the correct "abcdef"), overstruck (think
of writing an "A" and then writing an "X" over it) or completely missing.
During testing the problem was only seen
in a small region of NV708 (Great Basin National Park, Nevada). This
problem will continue to be researched; if you encounter it please
report the "Link", printed scale (or "Fit to Page"), and sheet size
("A, "B", etc.) to the Soils Hotline (send email to
your assistance will be greatly appreciated.
Workaround: Re-create the document (by again clicking on
"Printable Version" and "View" OR "Shopping Cart (Free)", "Check Out",
"Get Now"/"Download Later" and "OK" as appropriate). Examine the resultant
document for accuracy; you may need to repeat these steps several times.
|The printable map doesn’t show what was in the interactive map.
||Sometimes not all the map layers that are visible in the interactive map are visible in the printable map.
For example, Water Features lines, Transportation lines, or Federal Land boundaries may appear in one but not the other.
The display of certain map layers is controlled by the map scale.
Differences in the two maps may occur when the printable map is generated at a different scale than the
Workaround: Choose a particular scale for maps when creating a Printable Version or a Custom Report.
|Poor "Topographic Map" image quality at large scales.
||The "Topographic Map" background layer is best suited for display at scales of 1:18,000 and smaller.
If you use a larger scale (i.e., choose a larger scale or too large a sheet) the layer appears blurry.
Workaround: For "Automatic" scale, use a smaller sheet size, choose a smaller pre-defined scale
or choose different layers to include in the output document.
|Custom Soil Resource Report size estimates are inaccurate.
||The estimates shown for custom report size on the Shopping Cart tab
may be as much as 20% different than the actual size of the report.
Workaround: Don‘t take these estimates too seriously.
|Widows and Orphans in PDFs.
||In the Printable Version and Custom Soil Resource Report PDFs, the page breaks aren’t always where a human editor would have put them.
Sometimes these documents will contain a “widow,” the last line of a paragraph printed alone at the top of a page,
or an “orphan,” a subheading or the first line of a paragraph printed alone at the bottom of a page. No workaround.
|Custom Soil Resource Report “Get now” takes a long time.
||When using “Get now” on the Shopping Cart tab, it may take several minutes (perhaps as long as 20)
to create a Custom Resource Report. A message “Generating custom soil resource report...” is displayed while
the report is being created. Workaround: Wait for “Get now” to complete or use the “Download Later” option.
“Download Later” will allow you to continue using Web Soil Survey and receive an email when your report is ready to download.
|Printable documents (PDF) may not open in Internet Explorer 9 64-bit.
||This is an Internet Explorer bug related to the length of the PDF file name. If the name is too long it fails to open.
This most often occurs when an Area of Interest intersects multiple counties.
Workaround: Use any supported browser other than Internet Explorer 9 64-bit.
|Printable documents (PDF) may not open in Chrome.
||This is dependent on correct Chrome property settings.
Workaround: Set the following Chrome properties:
- Enable Chrome PDF Viewer
- Disable Adobe Reader
- Enable pop-ups
Download Soils Data
|STATSGO2 downloads from Web Soil Survey cannot be used with Soil Data Viewer.
||There is a problem with the definition of the MUKEY column in the shapefile.
It is defined as a numeric type, but needs to be a 30 character string to work with Soil Data Viewer. A fix to this problem is in development.
Workaround: Add and calculate an intermediate field to hold the MUKEY (e.g., MUKEY_orig), delete the old MUKEY column, and then add and calculate a new MUKEY field with text(30).
|The IMPORT macro cannot be used to merge STATSGO2 state datasets.
||There is a unique key constraint for MUKEY and other primary keys in the database.
|The US STATSGO2 data set cannot be used with Soil Data Viewer.
||The Access database is too large.
|Link “location” changes.
||If a URL is copied from the Link feature then pasted into a new browser, the “location” value may change slightly.
Workaround: None. Observed changes are very small relative to the mapping scale of soils data (1:12,000 to 1:24,000). Observed changes have been
equivalent to roughly 10 meters on the ground.
